Saldatrice Simder TIG-200 TIG/stick
Imposte incluse.
Spese di spedizione calcolate al check-out.
A 160A 2-in-1 Lift TIG and stick welder that runs on 110V or 220V — post-flow gas control, WP17V torch in the box, $160.99.
Lift TIG is the most forgiving way into TIG: touch the tungsten, lift, and weld. Post-flow keeps shielding gas on the tungsten and weld pool after the arc stops, so your first beads come out clean instead of oxidized. Switch to stick mode when the job is rusty, thick, or outdoors.
Two Processes. One Machine.
TIG for clean, precise work; stick for the dirty jobs. Same box, same power source.
Lift TIG
DC · Stainless, titanium, carbon steel
Touch start, no high frequency. Runs a stable DC arc on stainless, titanium, carbon steel, alloy steel, and copper — the metals that punish a sloppy arc.

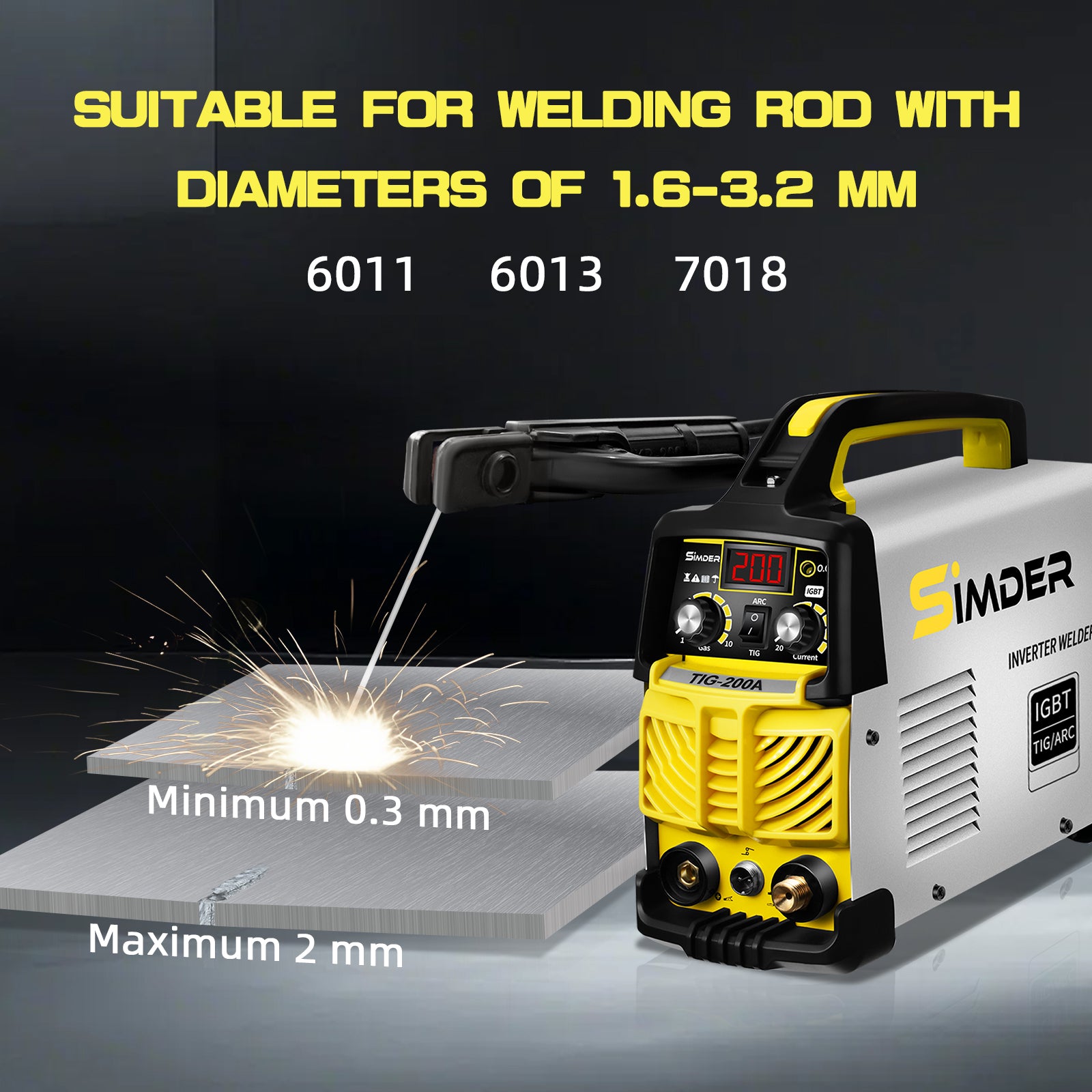

Stick (MMA)
Thick, rusty, painted steel
Built-in stick mode handles thick plate, carbon steel, low-alloy steel, and cast iron. Outdoor and windy jobs that would blow away TIG shielding gas are business as usual.
Post-Flow Control
Protects the tungsten after the arc
Adjustable post-flow keeps argon flowing after you release the trigger, shielding the hot tungsten and weld pool from oxidation. A feature usually missing on beginner TIG machines.
Dual Voltage
110V household or 220V full output
Plug into a household 110V outlet or a 220V circuit for full 160A output. A 220V conversion cord ships in the box for US and Canada orders.
At a Glance
Every number below comes from the official spec sheet — the same figures we publish on Amazon.
| Model | TIG-200A |
|---|---|
| Processes | 2-in-1: Lift TIG, Stick (MMA) |
| Max output | 160A |
| Input voltage | 110V / 220V dual |
| Aluminum | No — Lift TIG is DC only; for aluminum see the TIG-250AC |
| TIG start | Lift TIG (touch start, not high frequency) |
| Shielding gas | Required (100% argon for TIG) — gas hose included |
| Controls | Welding current adjustment, post-flow gas timing |
| Included | WP17V TIG torch, electrode holder, ground clamp, 220V conversion cord (US/CA), gas hose, operation manual |
| Weight | 6.83 kg (15 lb) |
| Certifications | CE (LVD 2014/35/EU) HTT202506902L; CE (EMC 2014/30/EU) HTT202506902E |
| Warranty | 3-year limited warranty |
Built for
- ✓TIG beginners — Lift TIG start is more forgiving than scratch-start, at a $160.99 entry price.
- ✓Stainless & precision work — clean DC TIG arcs on stainless, titanium, and carbon steel.
- ✓Dual-voltage shops — 110V household outlets or 220V for full 160A output.
- ✓Stick backup — switch to stick mode for rusty or thick steel without a second machine.
Not built for
- ✕Aluminum — this is a DC machine; aluminum TIG needs AC. See the TIG-250AC.
- ✕Production lines — DIY / prosumer duty cycle, not 24/7 factory duty.
- ✕High-frequency TIG features — Lift TIG start, AC output, and pedal control live on the TIG-250AC.
How It Compares
Same brand, three different jobs. Here is where the TIG-200 fits.
| TIG-200 (Simder) | Typical beginner TIG | TIG-250AC (Simder) | |
|---|---|---|---|
| Processes | Lift TIG + Stick (2-in-1) | TIG only | AC/DC TIG + Stick (6-in-1) |
| Max output | 160A | 120–140A | 250A |
| Voltage | 110V / 220V dual | 110V only | 110V / 220V dual |
| Aluminum | ✕ (DC only) | ✕ | ✓ AC TIG |
| Post-flow control | ✓ | Rare at this price | ✓ |
| Price | $160.99 | Varies | $359.99 |
Full Specifications
| Model | TIG-200A |
|---|---|
| Input voltage | 110V / 220V |
| Output | Up to 160A |
| Processes | Lift TIG / Stick (MMA) |
| Weldable metals (TIG) | Stainless, titanium, carbon steel, alloy steel, copper |
| Weldable metals (Stick) | Thick plate, carbon steel, low-alloy steel, cast iron |
| Controls | Welding current adjustment, post-flow gas timing |
| Weight | 6.83 kg (15 lb) |
| Certifications | CE LVD HTT202506902L · CE EMC HTT202506902E |

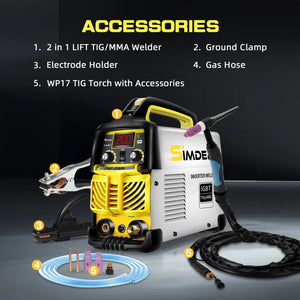

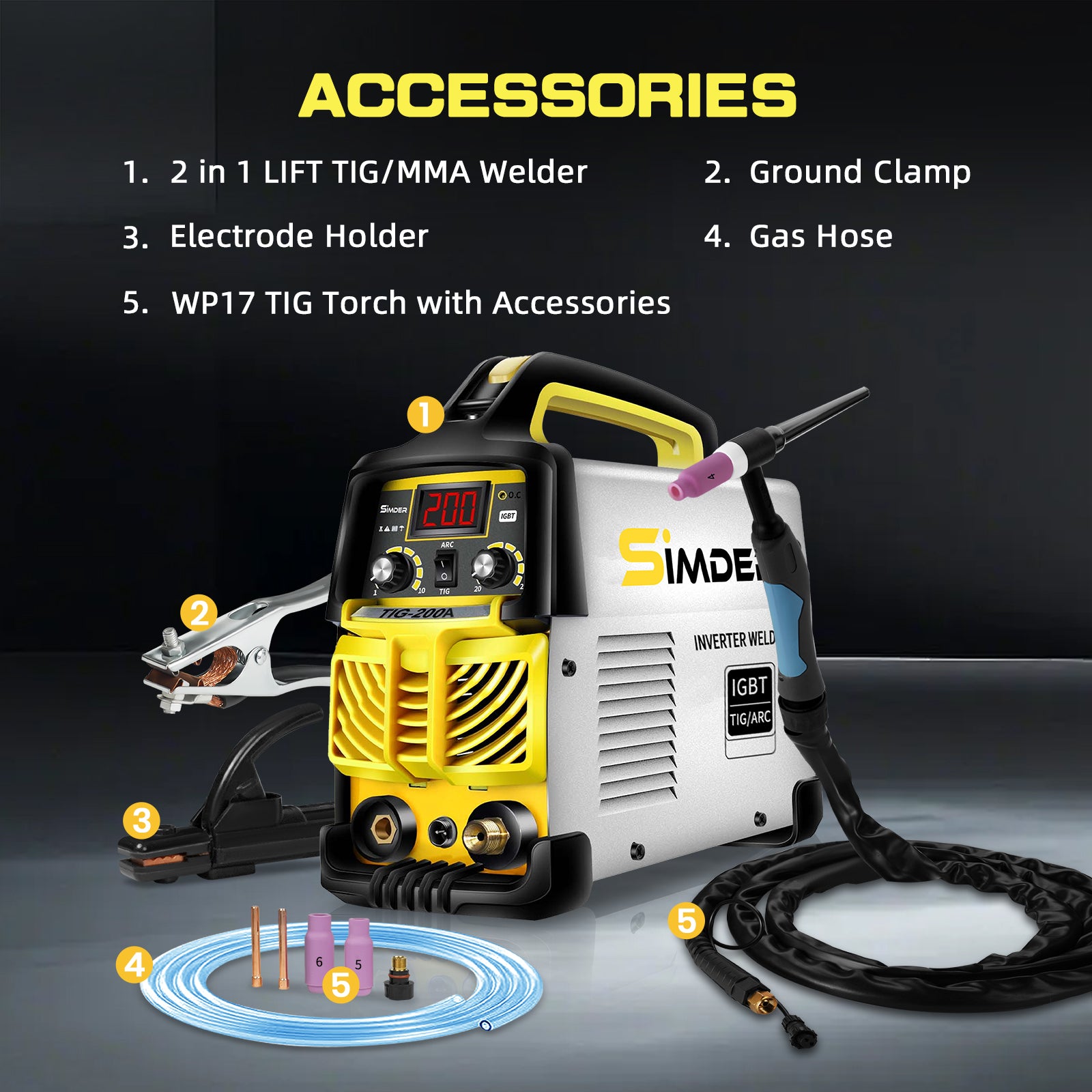

What's in the Box
Everything below ships in one carton — no separate accessory orders needed to get started.
- 01WP17V TIG torch
- 02Electrode holder
- 03Ground clamp
- 04220V conversion cord (US/CA)
- 05Gas hose
- 06Operation manual
Genuine SSimder Parts
Know Your Torches - and Their Kits
Every mode on this machine runs a specific torch, and every torch runs its own wear parts. Restock the exact kit yours needs.
WP17 TIG Welding Consumables - 55Pcs
Shop the Kit →
E7018 Welding Rods - 10 lb
Shop the Kit →All kits are genuine SSimder parts matched to this machine's included torches. Not sure which one you need? A photo of your torch tip is all it takes — service@ssimder.com.
Frequently Asked Questions
What's included in the box?
WP17V TIG torch, electrode holder, ground clamp, 220V conversion cord (US/CA orders), gas hose, and operation manual.
Can it weld aluminum?
No — the TIG-200 is a DC machine. Aluminum requires AC TIG; look at the Simder TIG-250AC.
Does TIG welding need gas?
Yes — 100% argon for steel and stainless. A gas hose is included; you supply the bottle and regulator.
Is it good for beginners?
Yes. Lift TIG start is more forgiving than scratch-start, and post-flow protects your weld while you learn.
Can I use it as a stick welder too?
Yes — 2-in-1 means stick mode is built in. Switch over for rusty, thick, or outdoor work.
Does it support a foot pedal?
The TIG-200 supports current adjustment on the panel; the foot pedal is designed for the TIG-250AC and HF TIG setups.
